Mello Studio Logo
Mello Studio

Precise Sound
Directional Audio

Revolutionary directional speakers that create focused audio zones
for enhanced privacy and targeted customer engagement.

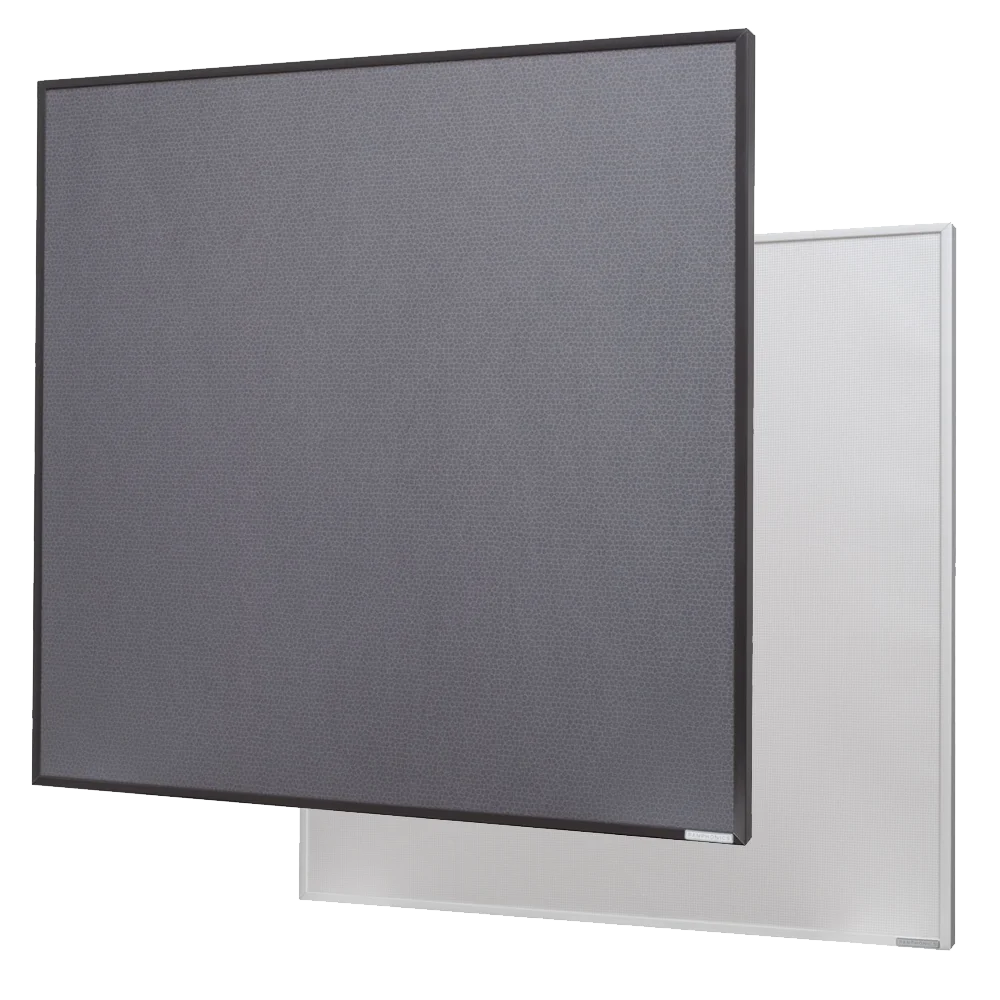

Panphonics Directional Speaker

Ultra-Narrow Sound Beam

Precise 15° audio targeting

Low Spillover

Minimal noise pollution

Thin Form Factor

Sleek, unobtrusive design

Trusted in Retail & Museums

Industry proven solution

Advanced Audio Technology

Experience the next generation of directional audio with innovative features designed for modern spaces.

Narrow Dispersion Angle
Precisely control where sound goes with ultra-narrow 15° beam dispersion for targeted audio delivery.
Speech Intelligibility
Crystal clear audio reproduction optimized for human speech with excellent clarity and definition.
Directional Privacy
Create private audio zones without disturbing surrounding areas, perfect for confidential spaces.
Lightweight Design
Ultra-thin profile and lightweight construction makes installation simple and unobtrusive.
Easy Mounting
Flexible mounting options for ceiling, wall, or custom installations with minimal hardware.
Energy Efficient
Low power consumption with high output efficiency for sustainable audio solutions.

Perfect for Every Environment

Discover how directional audio transforms different spaces and creates better experiences.

Retail Environments

Create focused audio zones for product demonstrations, promotional messages, and customer guidance without disturbing the entire store.

Recommended Models:

SSHP-60x60
Get Quote for This Use Case
Retail Environments

Technical Specifications

Precision-engineered for optimal performance in any environment.

Core Specifications
Click any row to copy the specification to your clipboard
Panel Sizes
SSHA 6060: 601 × 601 × 55 mm (23.7 × 23.7 × 2.15 in)
SSHA 12020: 1197 × 206 × 55 mm (47.1 × 8.1 × 2.15 in)
Weight
SSHA 6060: 3.4 kg (5.5 lbs)
SSHA 12020: 2.9 kg (4.5 lbs)
Frequency Response
Output frequency range: 250 Hz – 16 kHz (amplifier spec)
Audio element operational range: 300 Hz – 22 kHz
Dispersion Angle
60 × 60 cm: Opening angle ≈ 4° each side
120 × 20 cm: Narrow side 4°, wider side 16°
Frequency-dependent -10 dB angles provided (e.g., at 1 kHz ≈ 24.8°, at 16 kHz ≈ 5.8° for square panel)
SPL @ 1m
Maximum continuous SPL: 95 dB
Peak SPL: 108 dB @ 8 kHz / 3% THD
Power Consumption
External power supply: +24 V DC, 2.5 A (≈ 60 W max draw)
Type of Mounting
VESA-100 compatible bracket attachment on backside
🎚️ Input Type
RCA input (unbalanced, summed to mono internally)
Input impedance: 10 kΩ
Input voltage: 0.9 Vp-p

Why Choose Directional Audio?

See how Panphonics compares to traditional audio solutions.

Performance Comparison
FeatureDirectionalConventional
Beam ControlUltra-narrow beam (~4° each side)Wide dispersion; sound spreads
PrivacyCreates isolated listening zonesAudio bleeds into surrounding areas
Sound SpillExtremely low spillHigh spill into adjacent zones
Power Efficiency24V DC; minimal consumptionHigher power draw; less efficient
InstallationSlim, lightweight; VESA-100 mountingBulky enclosures; heavier mounting
Why Panphonics?
  • Crystal-Clear Sound Where It Matters: Panphonics Directional Speakers create highly focused audio beams, ensuring that your message is heard only where you want it — with exceptional clarity and intelligibility. Perfect for museums, retail, exhibitions, and corporate environments where precision is key.
  • Privacy Without Sound Pollution: Because of their extremely low sound spill, Sound Showers allow you to deliver audio directly to listeners while keeping surrounding areas quiet. Ideal for spaces where multiple audio zones coexist without disturbing one another.
  • Proven Technology, Trusted Worldwide: With patented electrostatic transducer technology and a history of successful global installations, Panphonics is a leader in directional audio innovation.
  • Energy-Efficient and Sustainable: Running on a simple 24V DC power supply with minimal consumption, Panphonics delivers powerful, clear sound while remaining eco-friendly. Compliance with EU RoHS, WEEE, and CE standards guarantees responsible and safe technology.

Hear the Difference

Experience directional audio with our interactive demo video.

Real-World Installations

See Panphonics directional speakers in action across different environments.

Retail Installation

Retail Environment

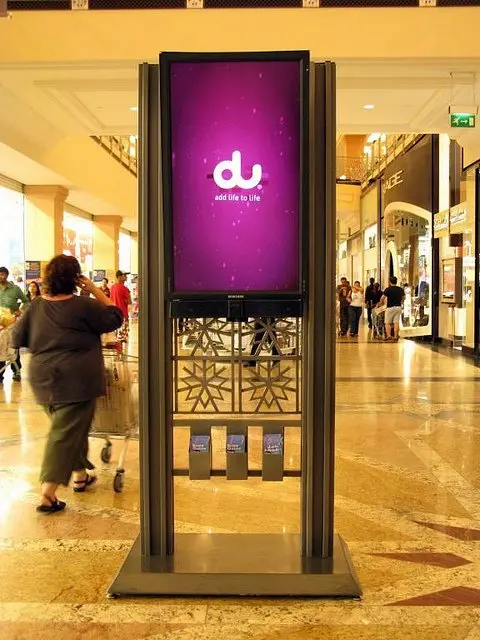

Digital Signage

Digital Kiosks

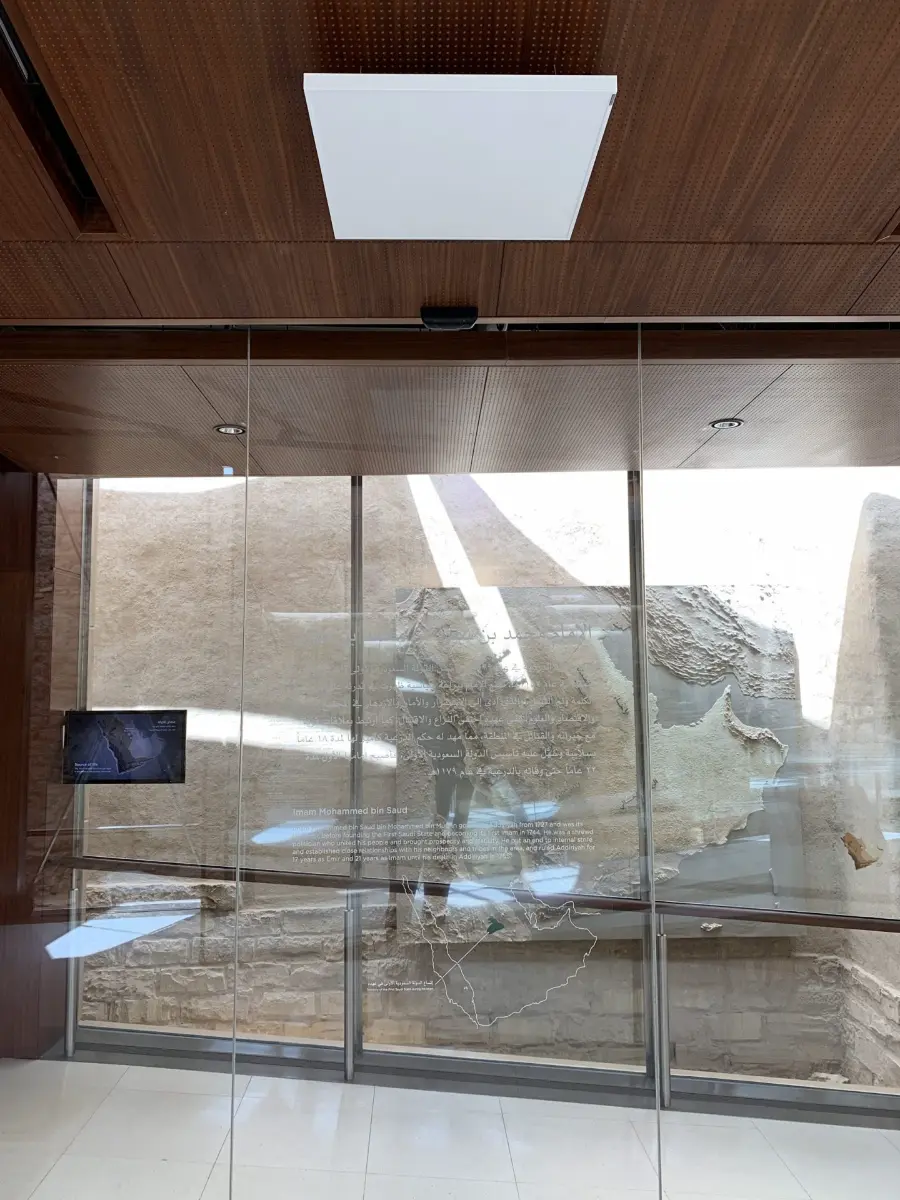

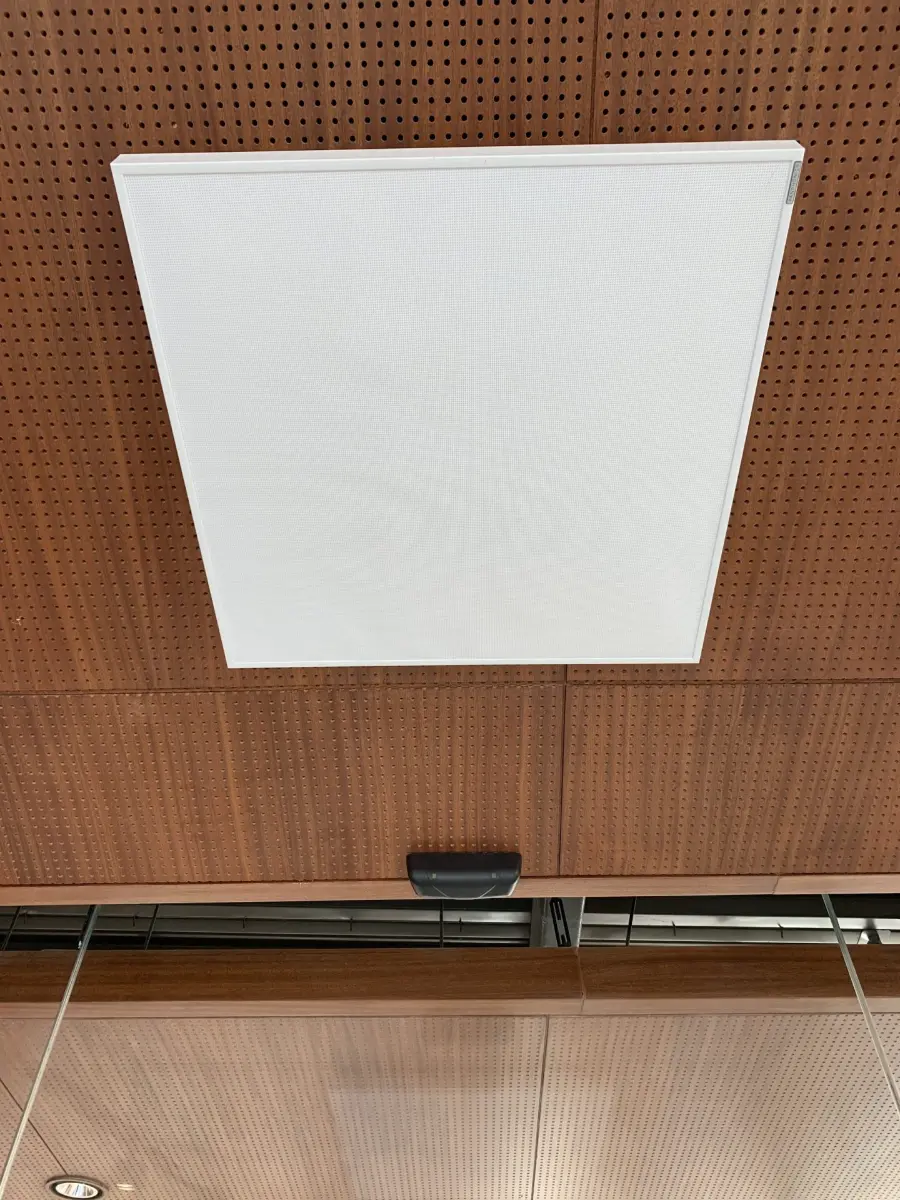

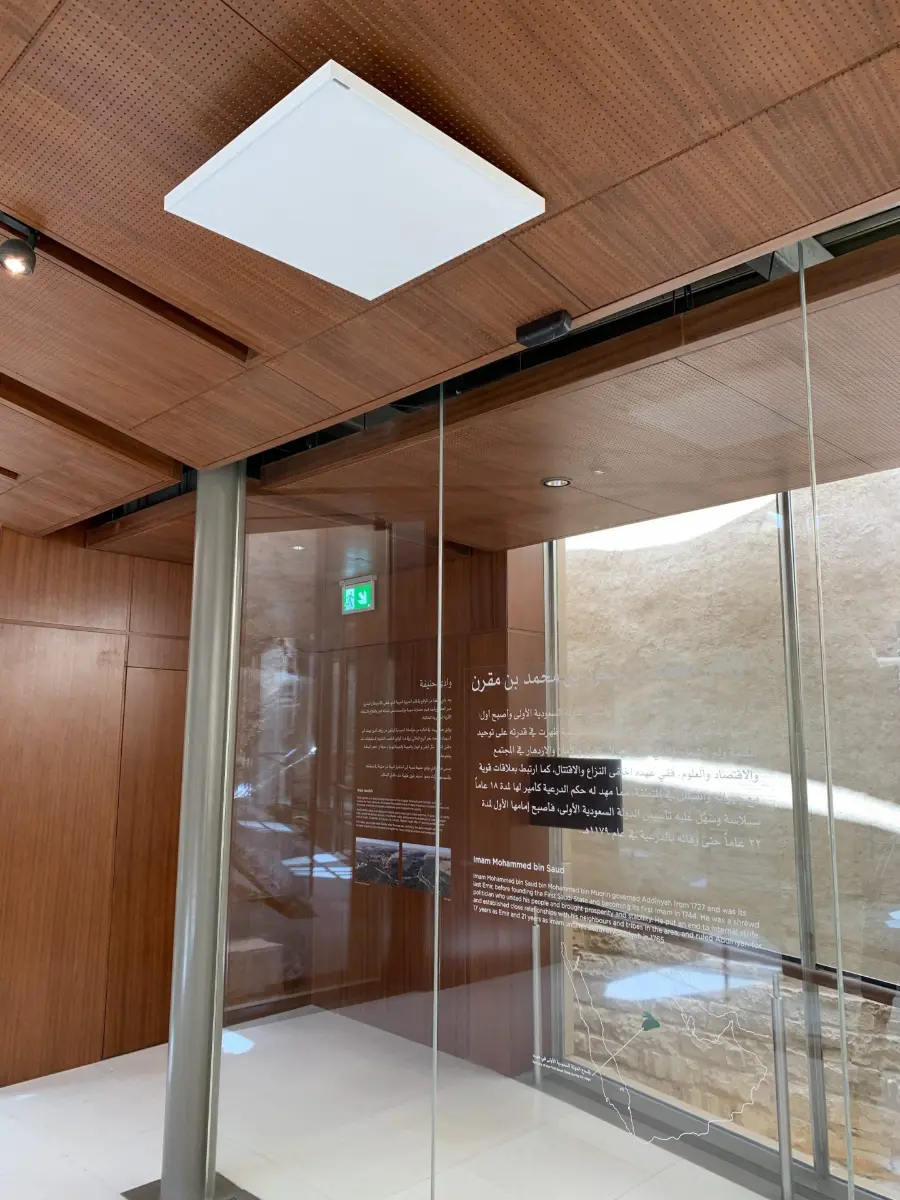

Museum Installation

Museum Setup

Public Space

Transportation Hub

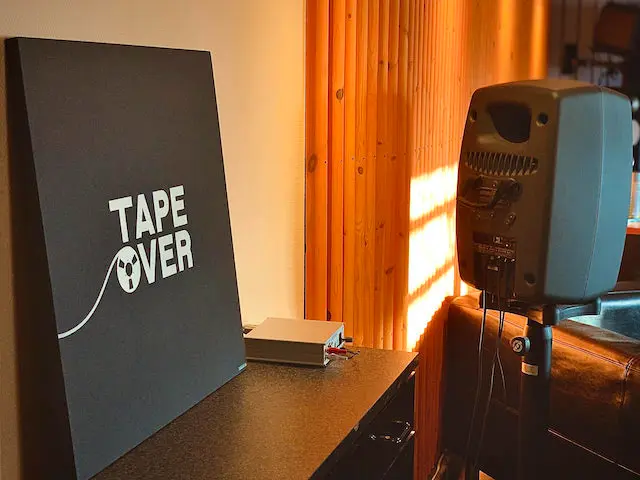

Studio Setup

TAPE OVER MASTERING

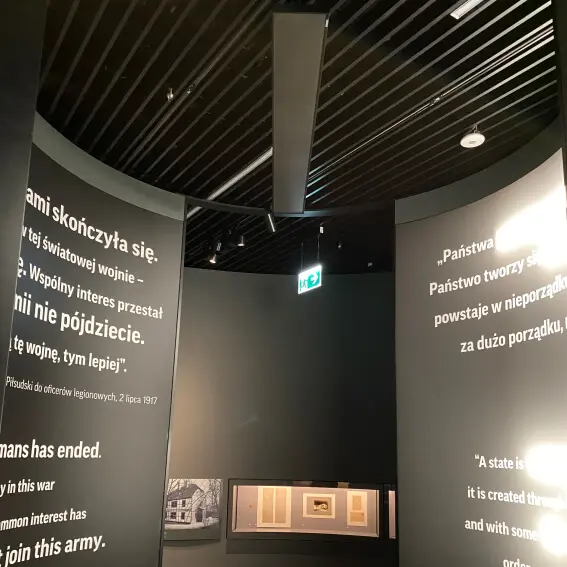

Museum Display

THE JÓZEF PIŁSUDSKI MUSEUM

What Our Clients Say

"National Children’s Museum is thrilled to host the international premiere of Moomin Animations – Thrills and Cuddles. As a Congressionally-designated institution in the nation’s capital, the Museum celebrates global cultural education, and the values that The Moomins represent."
Crystal R. Bowyer
National Children's Museum, Washington, D.C.
"The Sound Showers are the perfect product for the reception desks to create focused sound zones. Slim speaker element enables discreet installation.”"
Jukka Kaartinen
Sokos Hotels
"I use three different Finnish made speaker designs in my room and I can honestly say they are the best ones in their field. Active, passive, electrostatic: all innovative designs that makes your listening experience and decision making easier. Beautiful work, highly recommended."
Tommi Langen
Tape Over Oy

Trusted by industry leaders worldwide

Bahrain National Museum
Anghami
Aramco
Royal Comission For Riyadh City

Ready to Transform Your Space?

Get a customized quote for your specific needs and see how directional audio can revolutionize your environment.

Request a Quote
Get pricing tailored to your specific requirements
Get Custom Quote

✓ Free consultation included
✓ 24-48 hour response time
✓ GCC region support available

Book a Live Demo
Experience the technology firsthand
Schedule Demo

✓ In-person or virtual options
✓ Technical expert included
✓ Demo kit available in GCC

2-4 week lead time
Local GCC distribution
Full warranty included
